IHF Özel Spiral Taç Dişli Pinyon Helisel Hassas Konik Dişliler
Şimdi Soruşturma Gönderin
Konum: Ev > Ürün Merkezi > Dişli ve Zamanlama Kasnağı > Konik Dişli > IHF Paslanmaz Çelik CNC İşleme Standart Dışı Döküm Dövme Konik Helisel Dişli

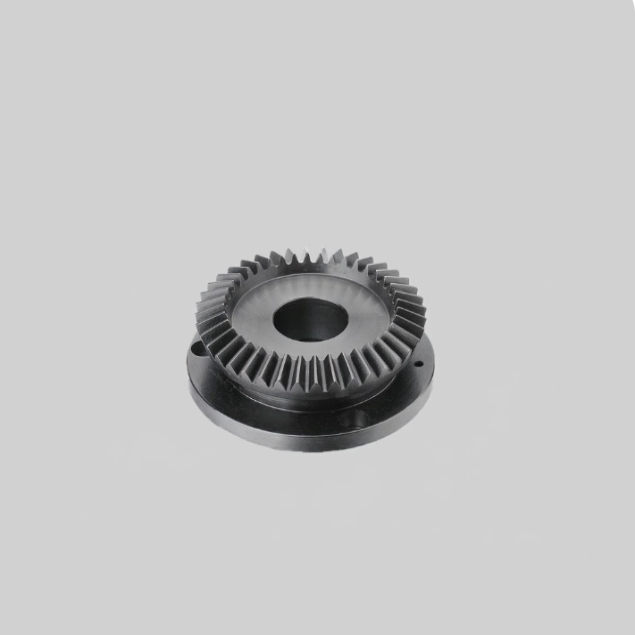

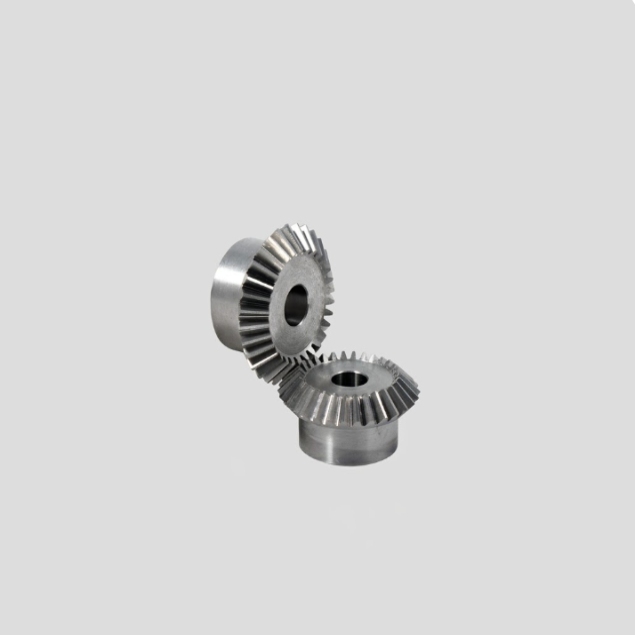

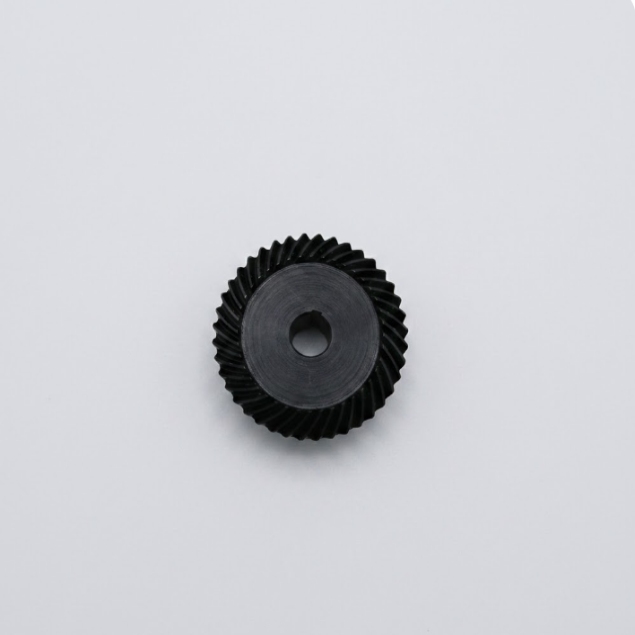

IHF Paslanmaz Çelik CNC İşleme Standart Dışı Döküm Dövme Konik Helisel Dişli
Productfeatures:
IHF Paslanmaz Çelik CNC İşleme, Standart Dışı Döküm ve Dövme Konik Helisel Dişli, karmaşık ve ağır hizmet tipi mekanik sistemler için tasarlanmış yüksek performanslı bir iletim bileşenidir. Gelişmiş CNC hassas işleme, dövme ve döküm işlemlerini birleştirerek, özelleştirilmiş endüstriyel uygulamalar için üstün mukavemet, doğruluk ve dayanıklılık sunar.
Bu ekipman yaygın olarak şu alanlarda kullanılmaktadır:
Endüstriyel otomasyon sistemleri
Ağır hizmet tipi makineler ve ekipmanlar
Madencilik ve inşaat makineleri
Güç iletim sistemleri
Denizcilik ve açık deniz ekipmanları
Özel mekanik tahrik tertibatları
Konik Dişli:
| Product Name | bevel gear |
| Material | Steel |
| shape | Bevel |
| warranty | 1.5 year |
| core components | PLC, Bearing, Motor, Pressure Vessel, Gear |
| Trademark | iHF |
| place of origin | Guangdong, China |
| pressure angle | 20 |
| Type | spur/helical/bevel/worm gear |
| Model | M0.5-M8 |
| Bore | Small hole , OEM hole |
| Color | Natural / Black/ as demands |
| Presicion grade | DIN7 DIN6 |
| Gross weight per batch | 2.500 kg |
Ürün Açıklaması:
| Product name | Bevel Gear |
| Type | spur/helical/bevel/worm gear |
| Model | M0.5-M8 |
| Pressure angle | 20 degree |
| Presicion grade | DIN5 to DIN7 |
| Color | Natural / Black/ as demands |
| Teeth Number | as demands |
| Hub | with hub or without hub |
| Set screw | can be customized |
| Bore | Small hole , OEM hole |
| Materials Available | Stainless Steel, Carbon Steel, Brass, Bronze, Iron, Aluminum Alloy，SCM415,20CrMoTi,40Cr,SUS303/304,etc |
| Heat Treatment | Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding...... |
| Surface Treatment | Carburizing and Quenching,Tempering ,Tooth suface high quenching Hardening,Tempering |
| Hardness | 55- 60HRC |
| Machining Process | Material preparation, normalizing, rough turning, quenching and tempering, semi fine turning outer circle, rough turning spiral surface, fine turning (fine grinding) inner hole end face, keyway, semi fine turning spiral surface, pliers (rest incomplete teeth), semi fine grinding outer circle, semi fine grinding spiral surface, grinding center hole, fine grinding outer circle, fine grinding spiral surface, finished product inspection |
| Applications | Electric machinery, metallurgical machinery, environmental protection machinery, electronic and electrical appliances, road construction machinery, chemical machinery, food machinery, light industrial machinery, mining machinery, transportation machinery, construction machinery, building materials machinery, cement machinery, rubber machinery, water conservancy machinery and petroleum machinery |
| Advantages | 1. Produce strictly in accordance with ANSI or DIN standard dimension 2. Material: SCM 415 steel 3. Bore: Finished bore 4.Precision grade: DIN 5 to DIN 7 5. Surface treatment: Carburizing and Quenching 6. Module: From 1 to 4 7. Tooth: From Z15 to Z70 8.Meshing transmission, accurate transmission ratio, stable transmission and low noise. 9.It is applicable to a wide range of power and speed 10.High efficiency,long service life, safe and reliable operation 11.Low cost,need to professional equipment process |
Başvuru
The IHF Stainless Steel CNC-Machined, Non-Standard Cast and Forged Bevel Helical Gear is a high-precision, highly durable mechanical transmission component. Manufactured from premium-grade stainless steel, it offers exceptional corrosion resistance and structural strength. Its unique helical tooth design effectively minimizes noise and vibration while enhancing transmission efficiency, making it widely applicable across sectors such as automation, aerospace, and automotive manufacturing.
